DS1235

Red and blue-violet laser Modules, wavelength and power can be customized

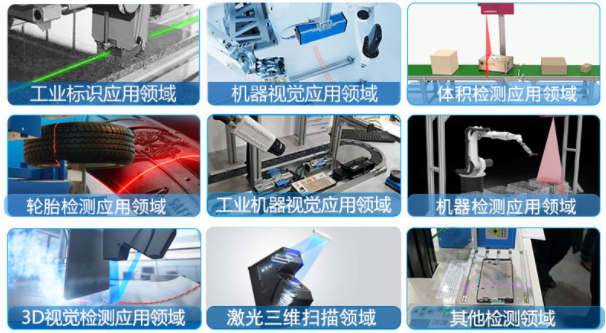

Application Field: Machine vision，Industrial inspection，3D measurement Photoelectric detection，Scanning，Atmospheric measurement， Construction processing,etc.

Since the website cannot display all specifications and models, please contact customer service for details! (Can be customized as needed)

Information
Downloads

Diameter	Φ12×35mm
Wavelength	405nm,450nm,515nm,520nm,635nm,650nm,780nm,808nm,980nm
Power	50-500mW
Light Type	Line
Beam Angle	10°/15°/30°/45°/50°/60°/75°/90°/110°
Focus	Fixed Focus
Working Voltage	3-5v/12-24v
Laser Class	1-3B/I-IIIb
