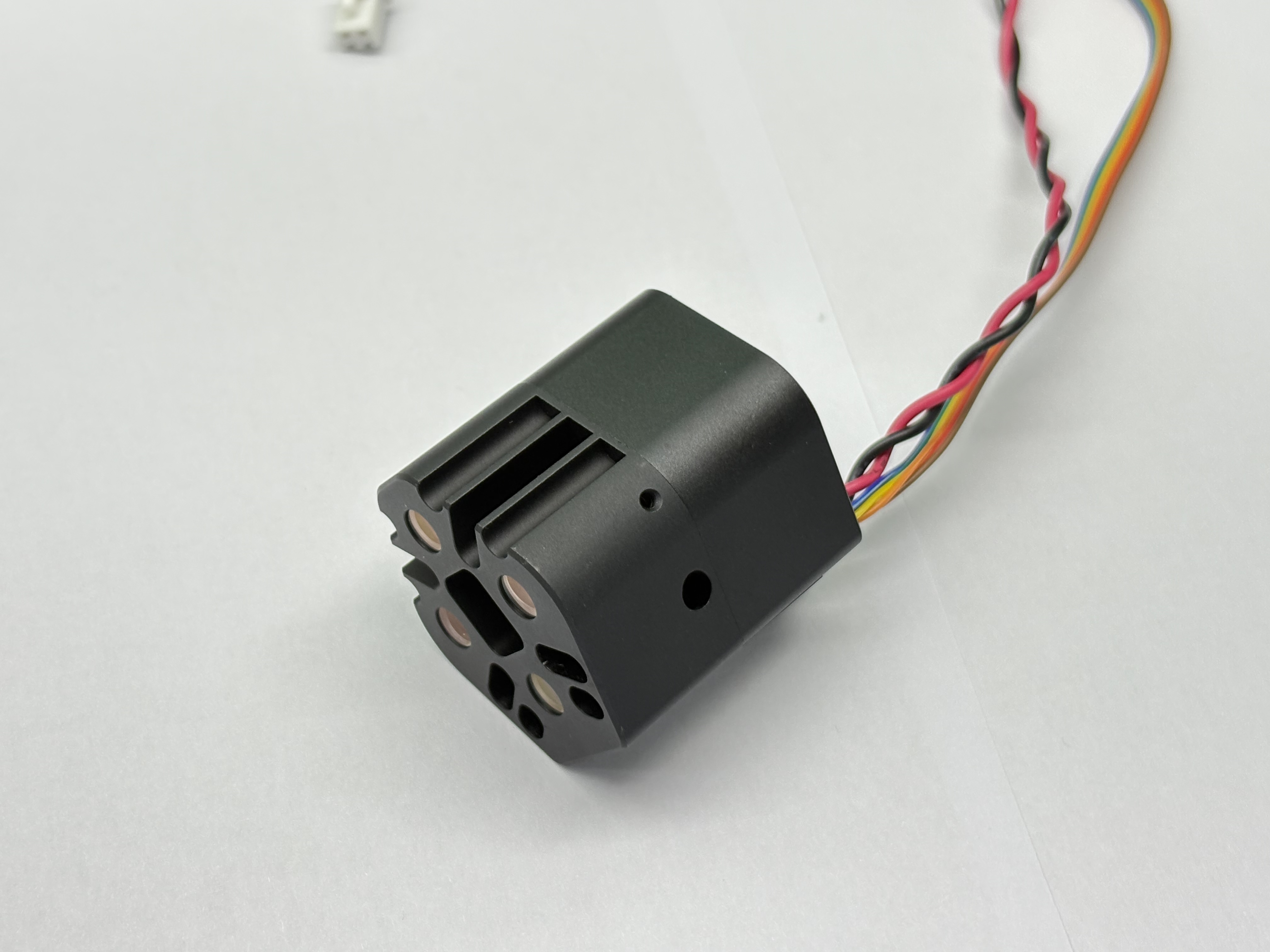

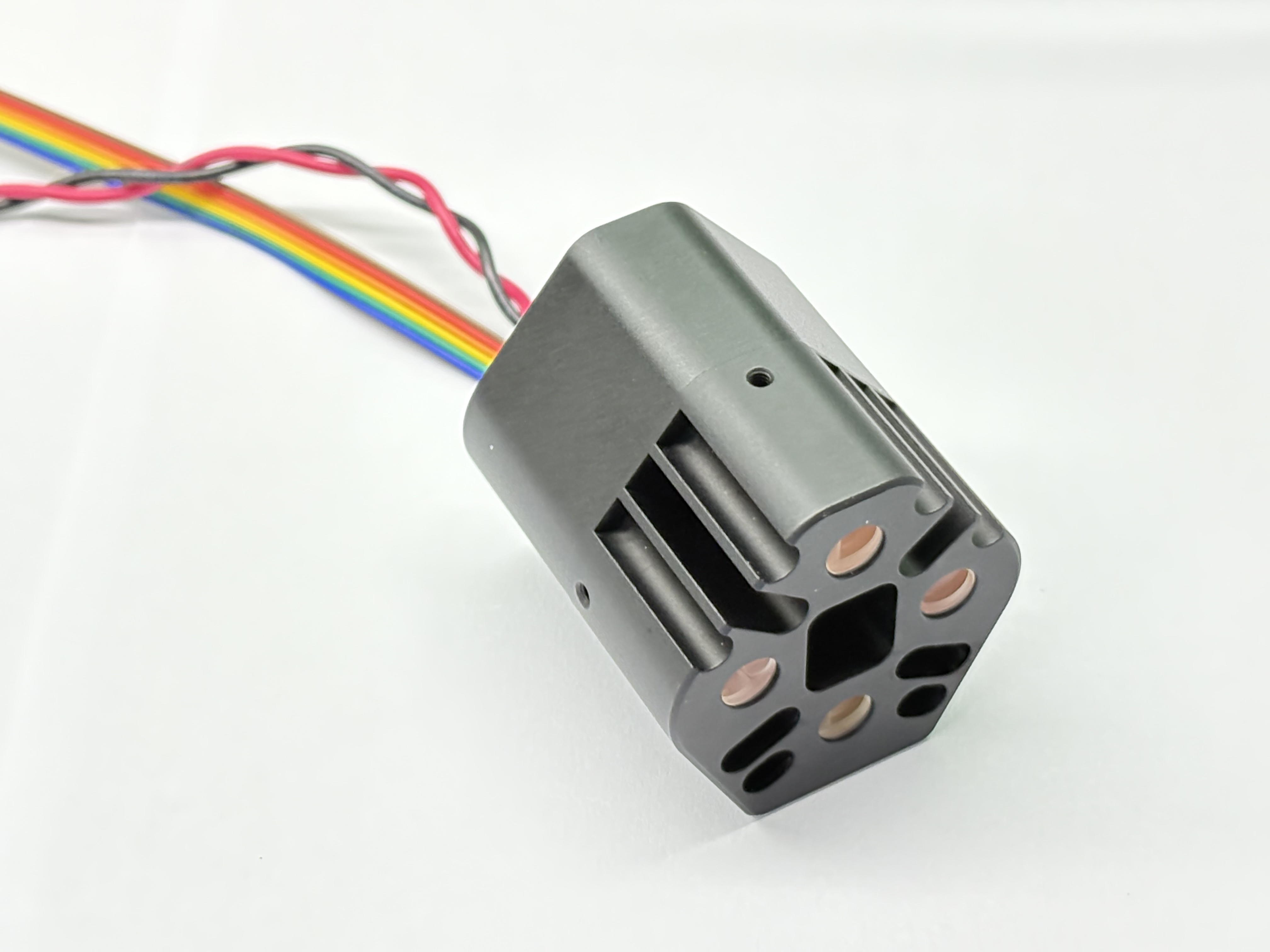

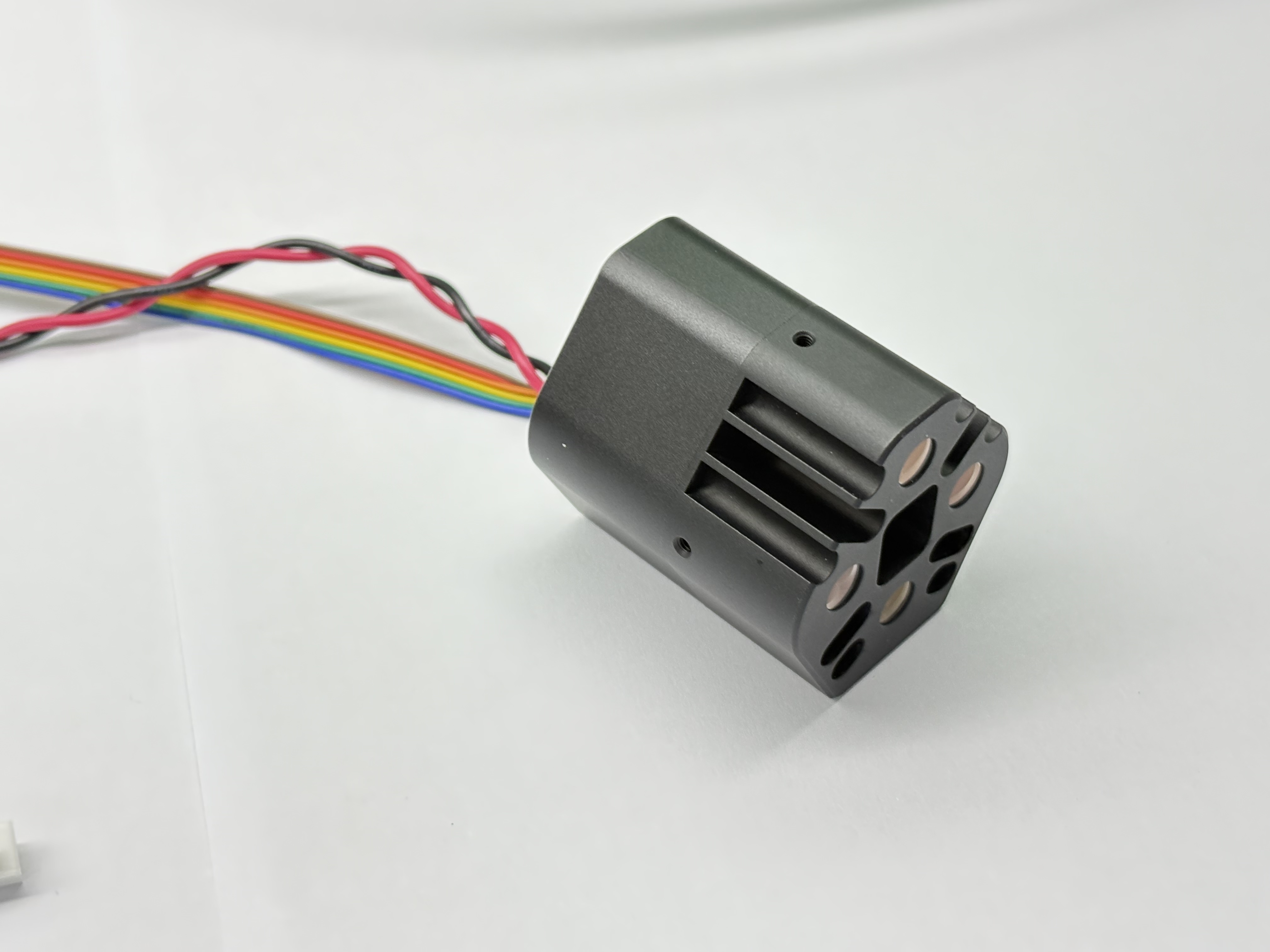

Quad-Channel Laser
Our multi-channel laser combines one horizontal line channel with two symmetric crossed multi-line channels, significantly improving line-scan accuracy and coverage efficiency. High uniformity and stability in a compact, lightweight package. Multiple line counts, line divergence angles, DOE divergence angles, and working distances available.
Features
No hot spots, stable imaging
Highly customizable
Uniform intensity distribution
Specifications
| Wavelength | 436-760nm |
|---|---|
| Fan Angle | Single line, 7-line, 13-line, 25-line, 49-line; measured on center line (customizable) |
| Working Distance | Fixed (customizable) |
| Line Width | Single line, 7-line, 13-line, 25-line, 49-line; measured on center line (customizable) |
| Depth of Field | Single line, 7-line, 13-line, 25-line, 49-line; measured on center line (customizable) |
| Single-Line Uniformity | ≥68% |
| Multi-Line Uniformity | ≥85% |
 Straightness | ≤0.45% |
 Operating Voltage | 3-7V±5% |
| Drive Mode | ACC constant-current |
| Adjustment Mode | PWM control |
| PWM Frequency | 0-100KHz |
| Service Life | 8000-10000h (25℃ case temperature) |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Ambient Humidity | 0-90% |
Applications
