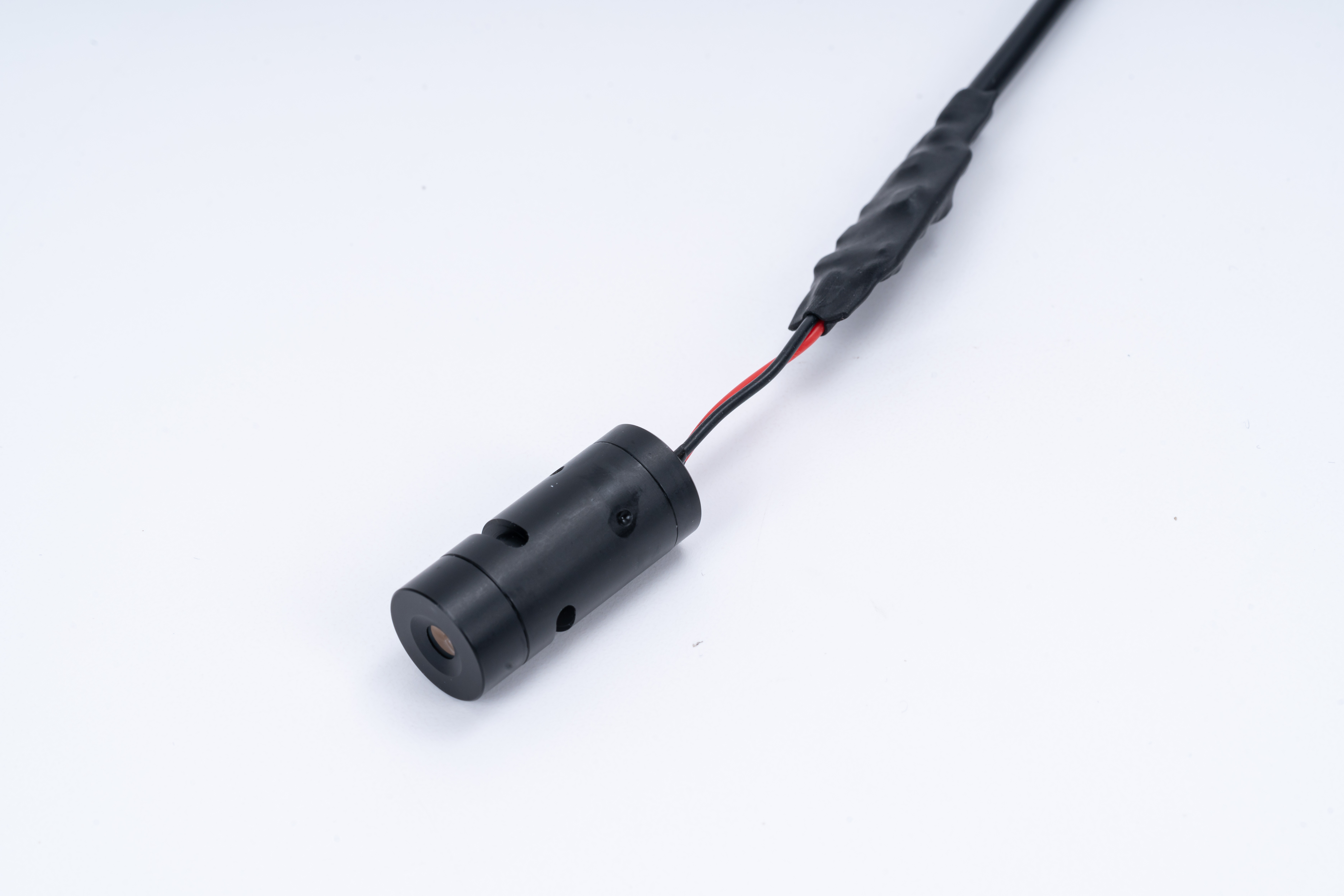

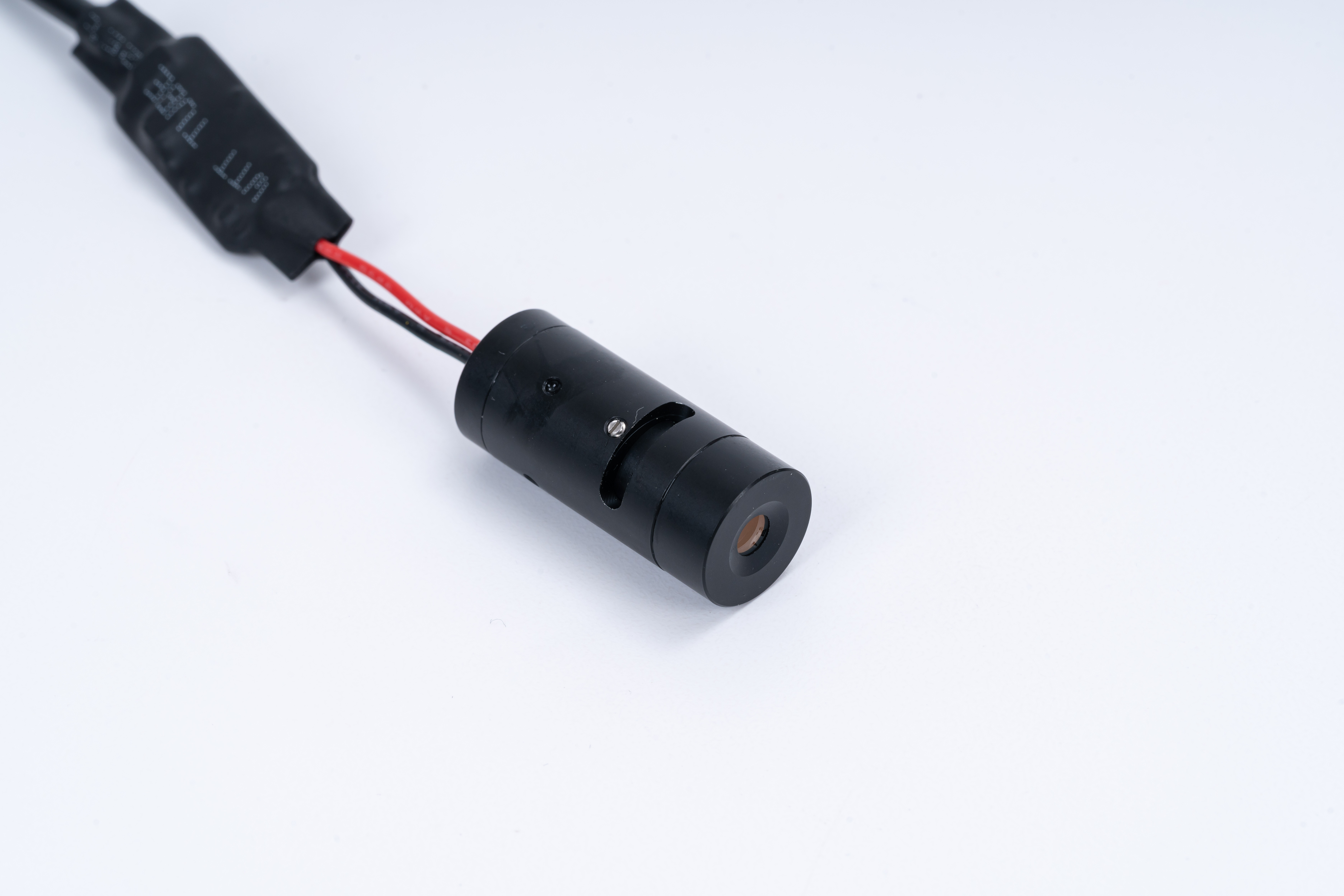

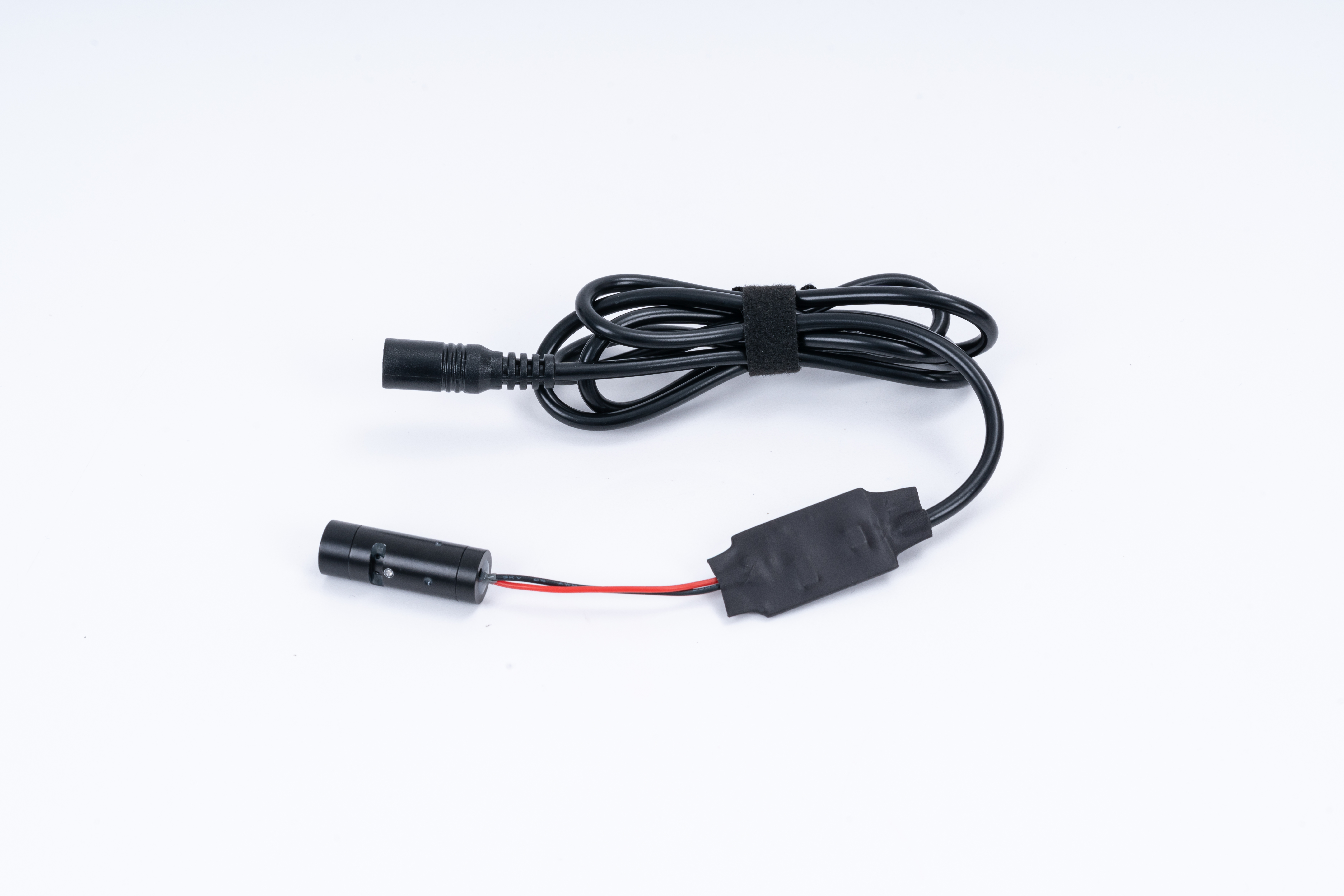

Compact Uniform Line Laser
Compact uniform line lasers deliver consistent line width and intensity in a small, highly reliable package with excellent pointing stability. ESD and over-temperature protection included. Customizable for OEM/ODM applications.
Features
High intensity & width uniformity
External focus / fixed-focus options
Excellent beam shape
High pointing accuracy and stability
Specifications
| Model | DS1235 / DS1535 |
|---|---|
| Dimensions | ∅12×35mm / ∅15×35mm |
| Beam Pattern | Single uniform line |
| Wavelength | 405nm, 450nm, 520nm, 635nm, 638nm, 650nm, 660nm, 808nm |
| Output Power | 10–5000mW |
| Working Distance | Fixed (customizable) |
| Uniformity | Single-mode low power ≥80%; multi-mode high power ≥70% |
| Straightness | ≤0.1% |
| Divergence Angle | 10°–90° |
 Operating Voltage | 3–5V, 12V, 24V |
| Operating Current | 100–5000mA (customizable) |
| Control Functions | Analog modulation, PWM modulation, TTL on/off (optional) |
| Protection | ESD protection, reverse-polarity protection |
| Operating Temperature | -10~50℃ |
| Storage Temperature | -40~85℃ |
| Service Life | ≥10000 hours |
