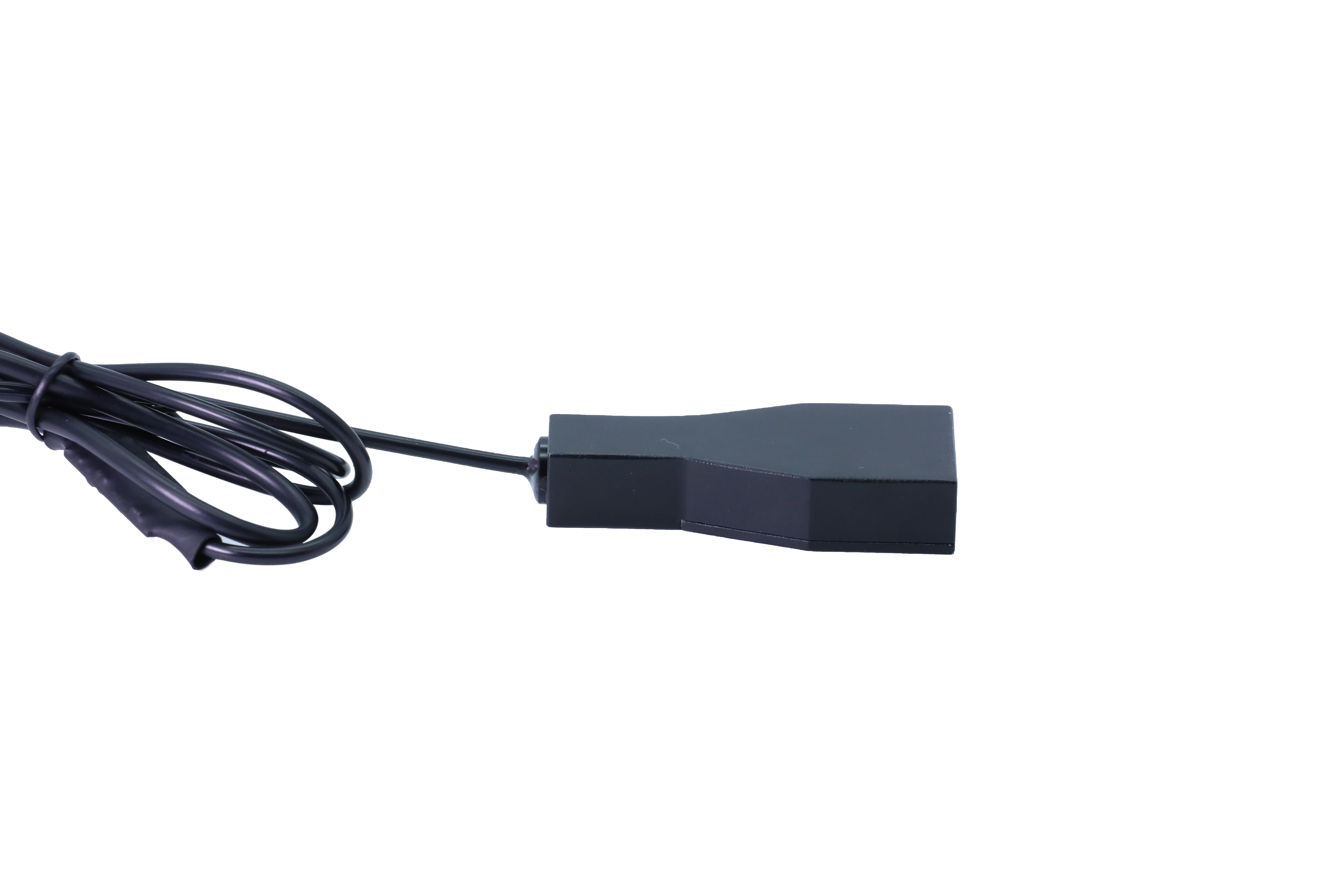

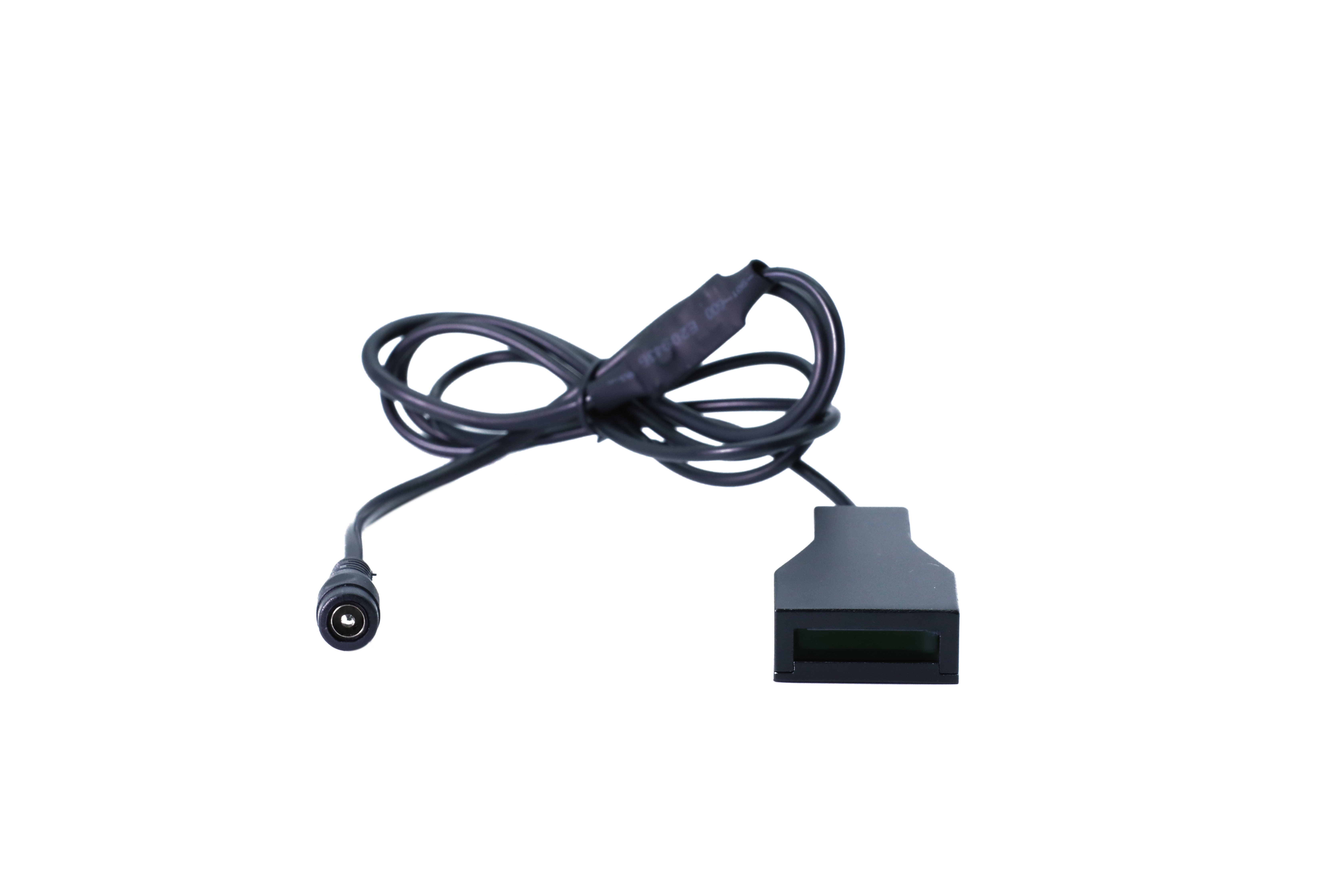

Parallel Uniform Line Laser
Designed for 3D inspection systems that require high-precision collimated spots. Unlike conventional line lasers, this parallel-beam module emits a parallel line with zero or ≤2° divergence, delivering shadow-free uniform illumination.
Features
Uniform illumination
Collimated line length
Reduced image occlusion
Uniform intensity distribution
Specifications
| Beam Pattern | Single parallel line |
|---|---|
| Wavelength | 405nm |
| Output Power | 70mW±10% |
| Working Distance | Fixed (customizable) |
| Uniformity | ≥80% |
| Straightness | ≤0.1% |
| Divergence Angle | ≤1° |
| Line Width | ≤50μm |
| Depth of Field (line width) | ≤50μm@67mm, ≤75μm@73mm, ≤120μm@76mm |
 Operating Voltage | 5V, 12V |
| Operating Current | ≤300mA |
| Control Functions | Analog modulation, PWM modulation, TTL on/off (optional) |
| Protection | ESD protection, reverse-polarity protection |
| Operating Temperature | -10~50℃ |
| Storage Temperature | -40~85℃ |
| Service Life | ≥10000 hours |
